The print head alignment utility is located in the Printer driver utilities window, to access the utilities provided in the EPSON driver you need to click on the desktop and then click File, select Print desktop. Now click on the Tools icon (spanner and screwdriver) and select the print head alignment utility. Then simply follow the onscreen instructions.

To proceed please click the link for instructions on how to access the Printer utility options window:

How do I use the printer software Utilities on MAC OS Classic?

Click on the Print Head Alignment icon to launch the utility.

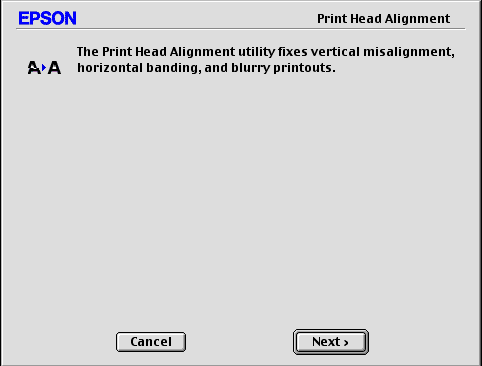

Click Next.

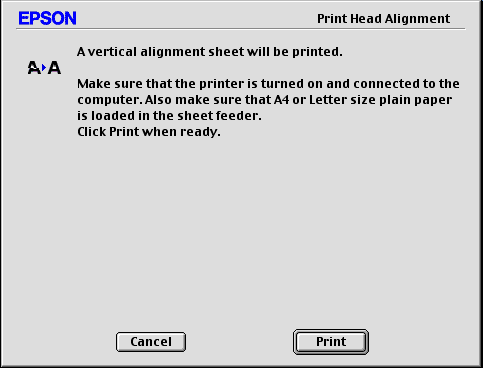

Click Print.

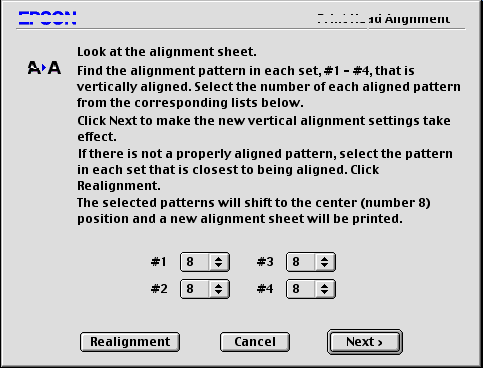

Read the instructions carefully and click next.

When the print out has vertically matched lines at point 8 in each graph the print heads are aligned correctly.
