Product Information
a. Edge guide: Helps load the paper straight. Adjust the left edge guide to fit the width of your paper.
b. Sheet feeder: Feeds a stack of paper automatically.
c. Paper support: Supports the paper loaded in the paper feeder.
d. Feeder guard: Prevents the objects which you place on the document cover from falling inside this product when opening the document cover.
e. Scanner unit: Raise and lower when you replace an ink cartridge.
f. Output tray: Receives ejected paper.
g.
On button: Turns this product on and off.
h. Document cover: Open and close when you place a photo or document.
a. Adjust lever: Adjusts the distance between the print head and the paper to prevent smearing. Adjust the
position of the lever should ink appear to smear across your document when printing on thick paper or envelopes.
b. Ink cartridge clamps: Hold the ink cartridges in place.

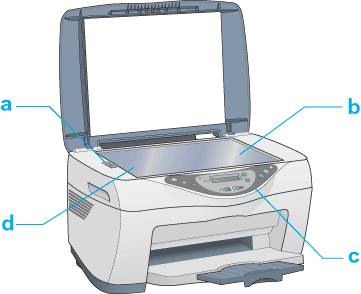

a. Transportation lock lever: Unlock the transportation lock lever to release the transportation lock.
b. Carriage: The optical sensor and light source for scanning. Before scanning the carriage is in the home position.
c. Control Panel: See Control Panel Functions for details on panel operation.
d. Document table: Place originals face-down on the glass.
